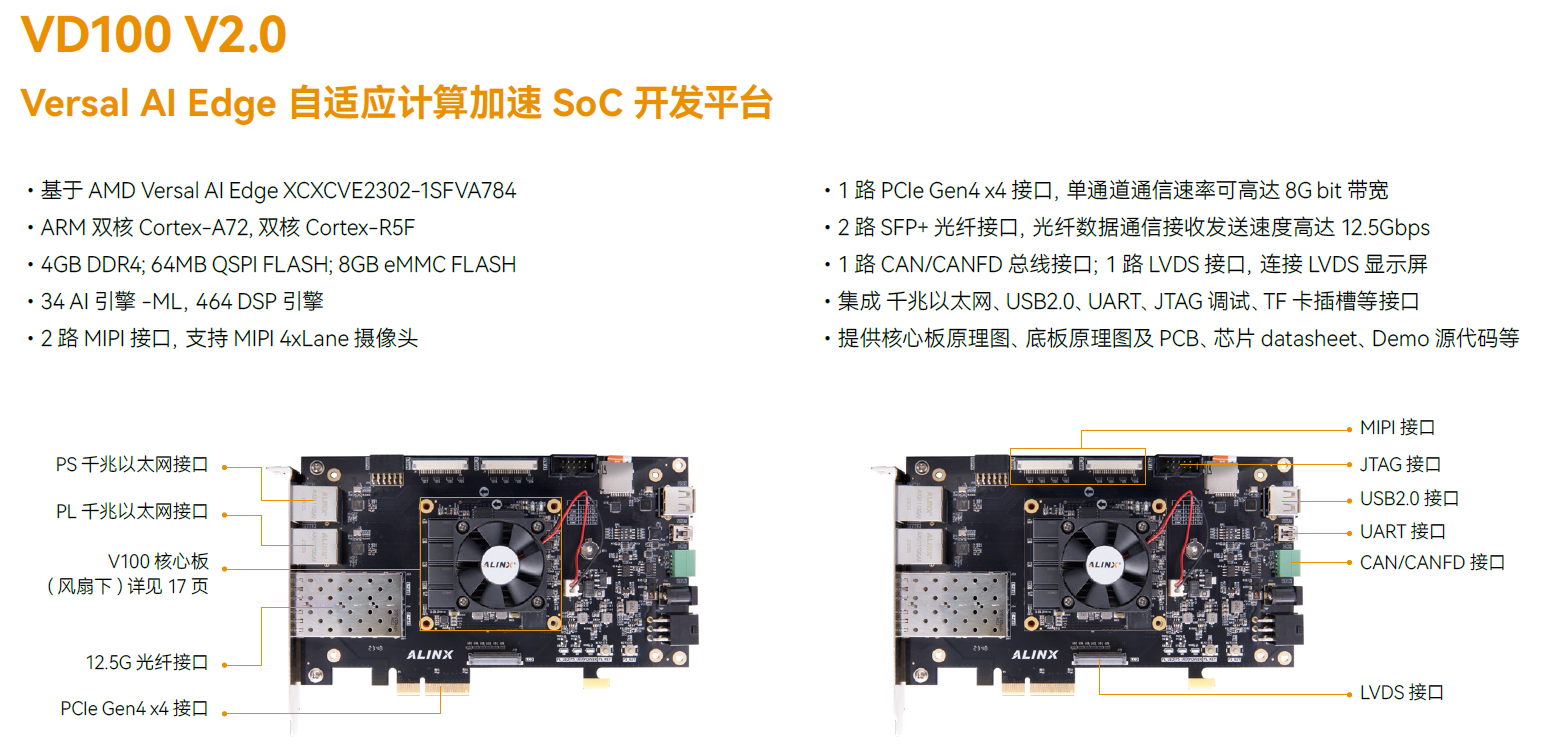

VD100 Development Board with AMD Versal AI Edge VE2302
Equipped with a multitude of peripherals, VD100 is the ideal development board for your applications based on AMD/Xilinx's Versal devices. The pluggable module offers you the flexibility to customize your own carrier board for mass production
Product Description
Equipped with a multitude of peripherals, VD100 is the ideal development board for your applications based on AMD/Xilinx's Versal devices. The pluggable module offers you the flexibility to customize your own carrier board for mass production.
The Versal™ AI Edge series delivers high performance, low latency AI inference for intelligence in automated driving, predictive factory and healthcare systems, multi-mission payloads in aerospace, and a breadth of other applications. As an adaptive compute acceleration platform, Offers AIE-ML and DSP hardware acceleration engines, along with multiple high-speed connectivity options. support a breadth of workloads common in edge applications including AI inference, image processing, and motion control.

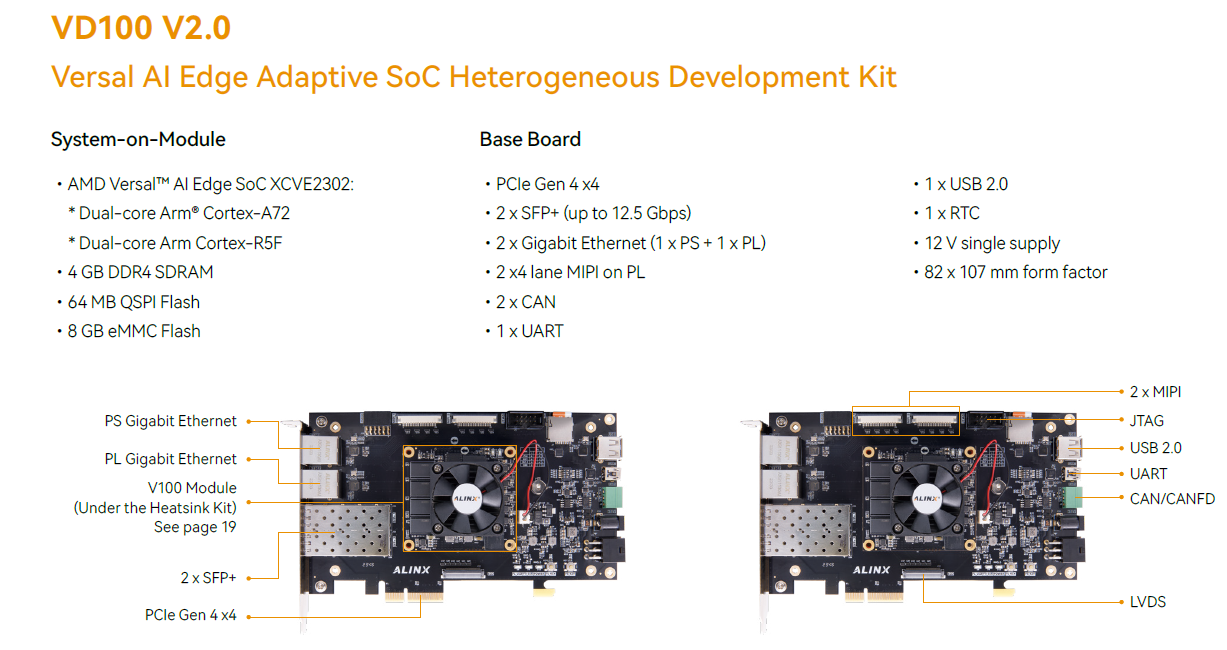

Key Features
System-on-module:
AMD/Xilinx Versal™ AI Edge SoC:
Dual-core Arm® Cortex-A72
Dual-core Arm Cortex-R5F
16nm FinFET+ FPGA fabric
Pluggable module with 2 x Samtec board-to-board connectors
4 GByte (64-bit) DDR4 SDRAM
64 MB QSPI Flash
8 GB eMMC Flash
Base Board:
PCIE 3.0 x4
2 x SFP+ Slots (per line 12.5Gbps)
2 x Gigabit Ethernet (1 x PS + 1 x PL)
1 x UART
2 x 4 lane MIPI on PL
2 x CAN on PS
1 x USB 2.0
EEPROM: 4-Kbit I2C Serial EEPROM + 1 x Temperature sensor (LM75)
1 x RTC (Real-time clock)
12V single supply
Dimensions: 182 x 107 mm form factor
Development Board Features
Featuring the AMD/Xilinx Versal AI Edge XCVE2302-SFVA784-1LP-E-S Adaptive SoC
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD Xilinx Versal AI Edge based application.
