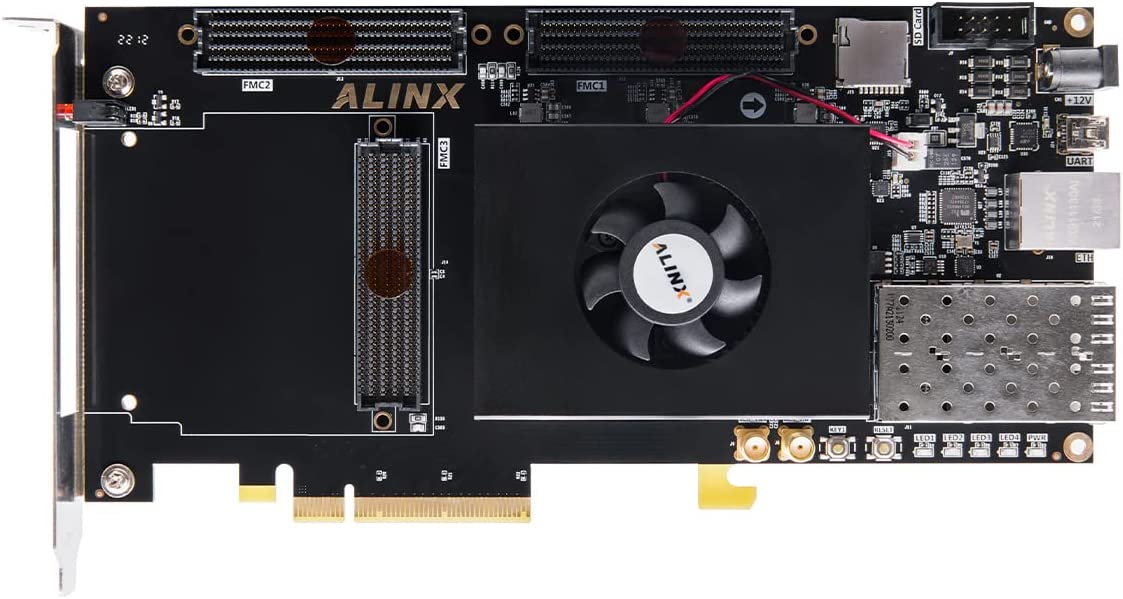

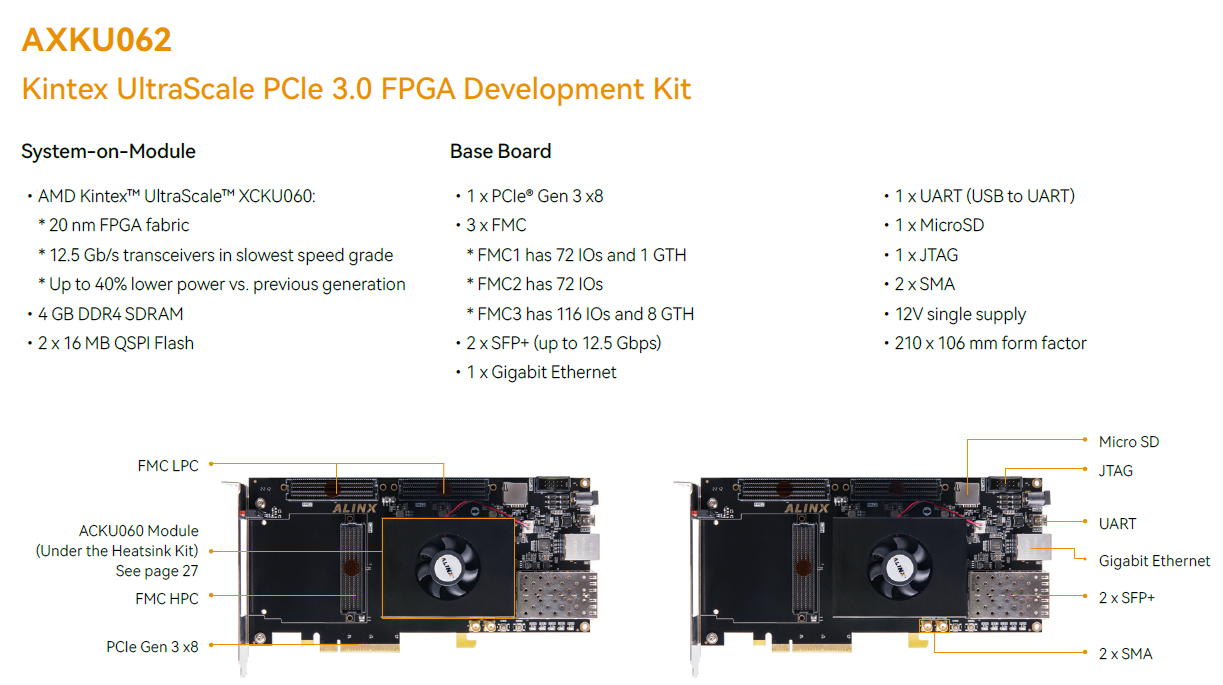

ALINX AXKU062

Xilinx Kintex UltraScale KU060 XCKU060 PCIE 3.0 FPGA Development Board SFP FMP HPC LPC

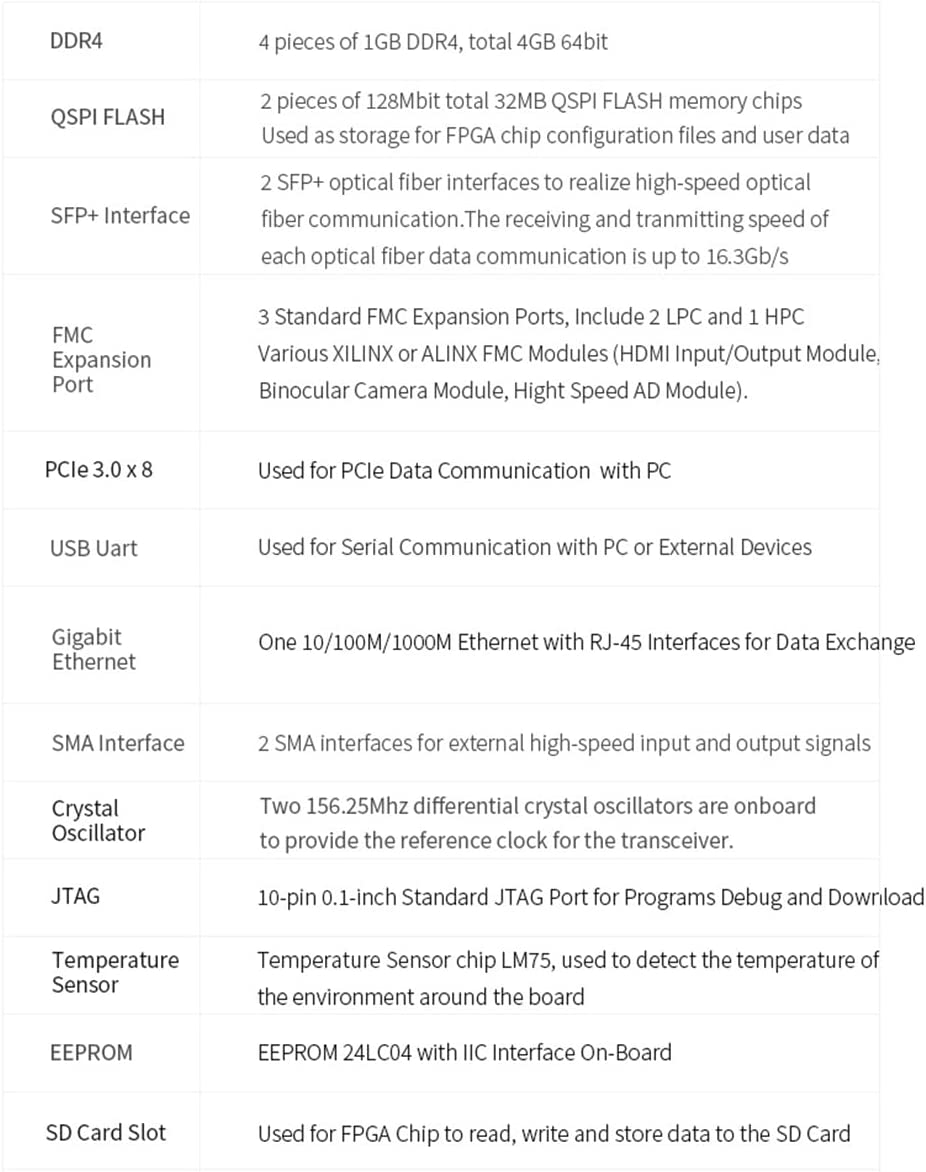

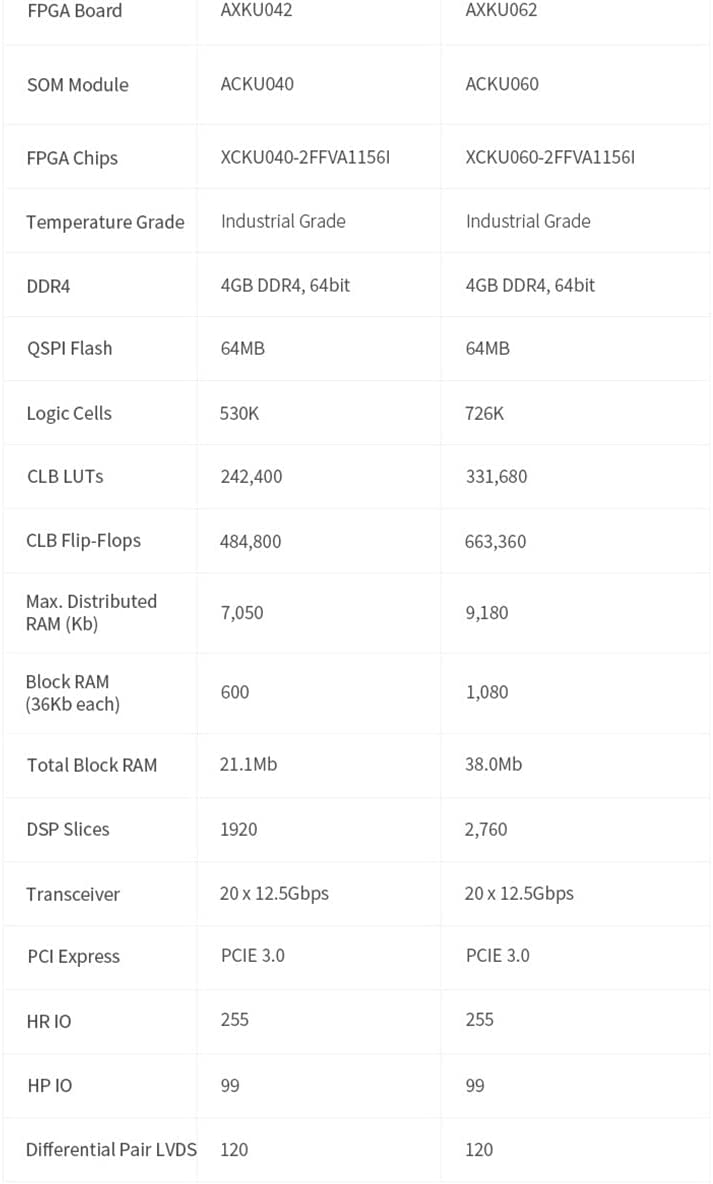

FPGA Chip XCKU060-2FFVA1156I
4 x 1GB DDR4, 4GB, 64bit, Data Rate 2400Mbps
2 pieces of 128Mbit total 32MB QSPI FLASH
2x LPC,1xHPC FMC Expansion Interface

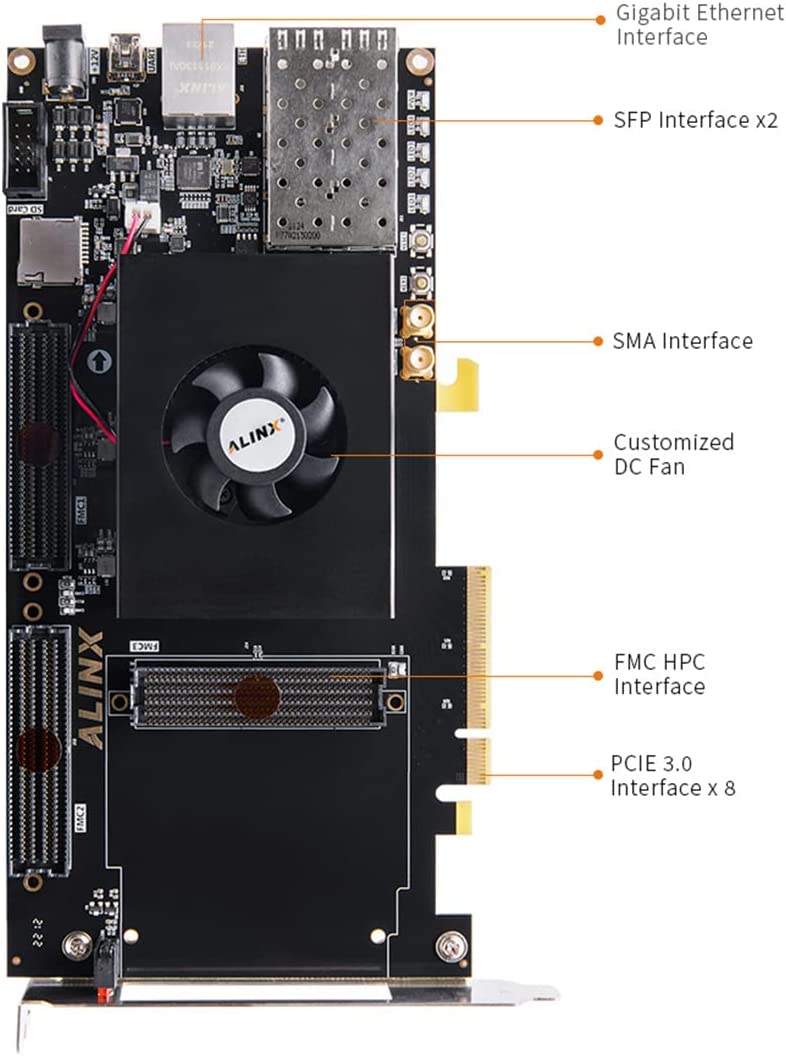

PCIe 3.0 x 8
2 SFP+ optical fiber interfaces
Gigabit Ethernet interface for Ethernet data exchange with computers or other network devices

2 SMA interfaces for external high-speed input and output signals
Sensor Chip LM75, Used to Detect the Ambient Temperature

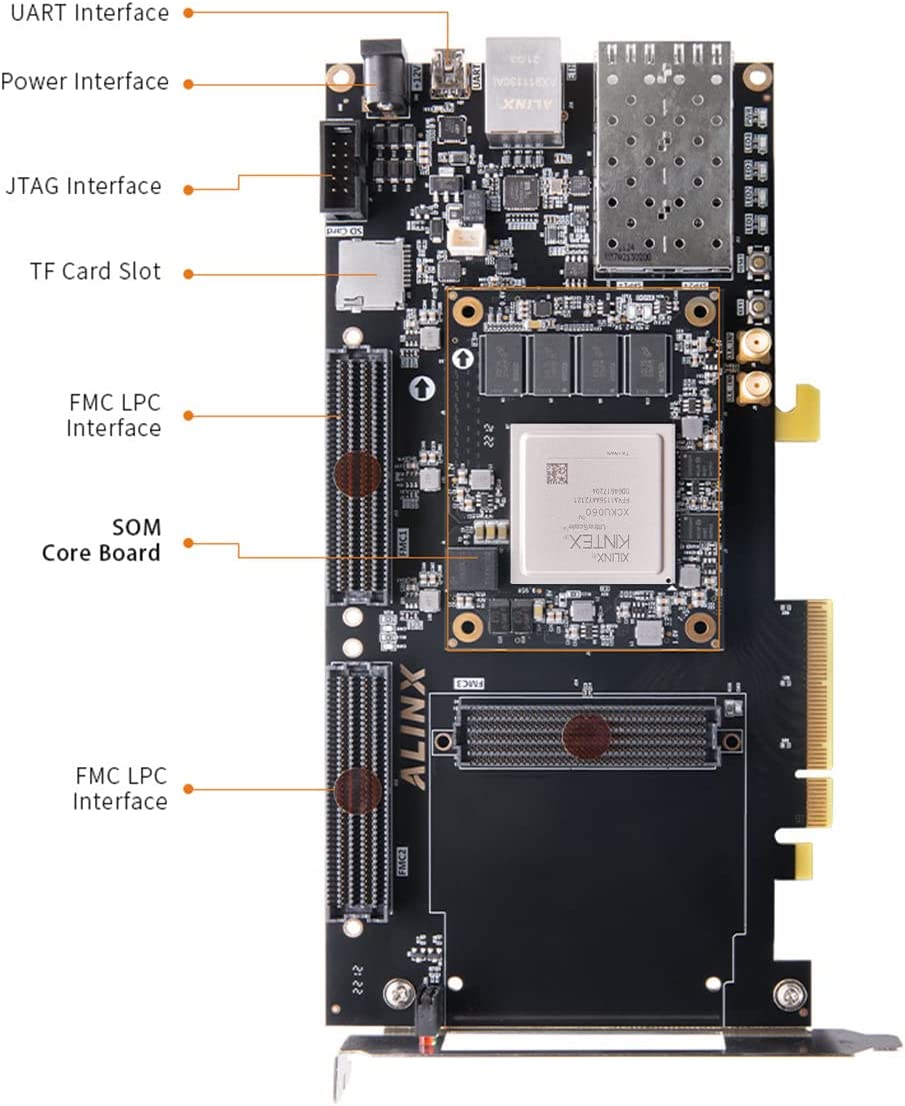

Core Board ACKU060 SOM Core board with carrier board

.
